Process

Home / Process
01

Spindle Entrance to Spintec

02

Diagnosis and Disassembly
(1 Week)

03

Quote & Accept by Customer

04

Part Procurement / Production
(2 Weeks)*

05

Assembly
(1 Week)*

06

Spindle Delivery From Spintec

DISASSEMBLY

  • All spindle parts disassembly
  • Check for visible damage/ failure
  • Identify reasons for failure

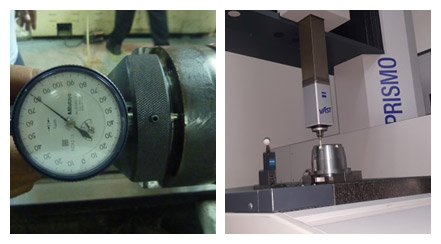

INSPECTION OF FAULTY SPINDLE

  • Inspect all critical parts thoroughly
  • Perform motor, sensor and other electrical checks
  • Identify reasons for failure
  • List out corrective actions
  • Prepare spindle analysis report
  • Prepare spindle repair quotation

PARTS RECONDITIONING AND GRINDING

  • Hard-chrome plating and taper grinding
  • Bearing housing bore, Spindle shaft (front and rear) diameter grinding. Hard chrome plating if needed

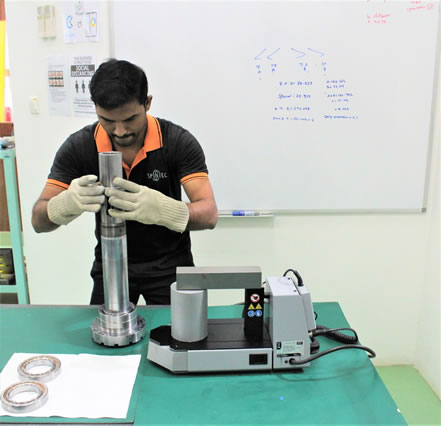

BEARING ASSEMBLY WITH PROPER PRELOAD

  • Bearing preload influences speed limits, rigidity and other
    applicable work loads
  • Thrust load is applied to shaft and its axial displacement
    is measured for obtaining preload

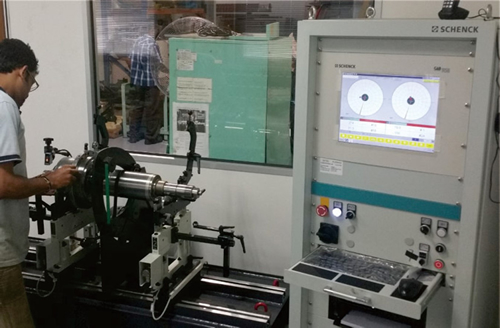

DYNAMIC BALANCING

  • Check shaft or rotating mass imbalance of all parts
  • Schenck precision balancer is used to ensure conformity to ISO 1940/1 standard

STATOR REWINDING

  • Full electrical integrity checks for the spindle motor winding including resistance, impedance and insulation check
  • On damaged or burnt out stator rewinding is done to OEM specification

ASSEMBLY

  • Ultrasonic cleaning of all spindle parts
  • Every spindle component is thoroughly degreased and deburred for sharp free edges
  • All mechanical and electrical parts assembly
  • Frequent checks after every part assembly/ sub assembly to ensure correctness

ACCURACY CHECK AND TEST RUN

  • Test run until maximum speed and ensure thermal saturation
  • Clamping force check and test bar check as per ISO 10791-2-1001standard
  • Noise test and vibration test (at test bench using field balancer)
